The most complex welding challenge when producing this type of cooling tower complex is welding the tubes in the rear plate, where access is restricted. The quality of the welding must be perfect and consistent on all tubes because re-doing it in the event of a defect is practically impossible. Under these circumstances, only TIG welding offers the right quality. Although the choice of welding equipment is important, preparing the joints for welding is equally so.
In the context of the Fadhili project, the problem in practical terms is to ensure excellent preparation of the joints despite the distance between the front plate and the area to be machined (450mm) and the need to do two different types of machining – machining a weld joint and flattening the weld area then levelling the tube end before welding. To this is added the machining tolerance constraints, repeatability on several hundred holes and equipment portability.
With the plant scheduled to open in late 2019, Hamon d’Hondt had to react quickly and chose to rely on experts in their field to guarantee production.

The COFIM solution

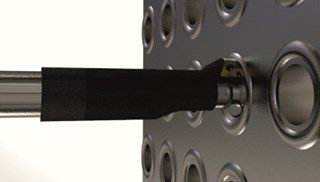

Based on more than 30 years of experience and with Hamon D’Hondt already having several TU2 machines, COFIM decided to respond with a modified version of that model. The result is a TU2 ALR which operates in a similar way to the standard machine but is equipped with a clamping system and a special tool holder. Furthermore, with this solution being quicker to implement, it also has the advantage of having greater machine rigidity, thanks to a design which maximises the diameter, to ensure accuracy and repeatability of machining, using a wraparound clamping system. In addition, it is quick and simple to change tools and using a commercially available ISO carbide plate reduces the cost of consumables.

The TIG solution

Polysoude has long been a supplier to Hamon d’Hondt. Based on more than fifty years of experience, the choice of welding equipment naturally leaned towards the new TS 8/75 tube/plate TIG welding head. Indeed, its modularity, the extent of its range of tools and its robustness met all the characteristics for fulfilling this project. A so-called “double plate” welding head has been developed to do the welding, in spite of the distance. The welding head, linked to a P6 family welding machine, has the advantage of being fully automated with all welding ratios recorded which allows weld quality and reproducibility to be monitored, since the parameters are being recorded. Also, since the controls and clamping are on the handles, productivity is assured.
