3D Systems have added two new materials to their portfolio: Certified HX and Certified CuCr2.4. These materials can be applied in various industries, such as energy, aerospace and automotive.
Text by 3D Systems
3D Systems (NYSE:DDD) has announced the addition of two new materials — Certified HX and Certified CuCr2.4 — to its materials portfolio. Both materials are certified for use with the company’s DMP Flex 350, and DMP Factory 350 3D printers, and HX is also certified for the DMP Factory 500 to address a breadth of applications requiring high strength and corrosion-resistance in industries such as energy, industrial gas turbines (IGT), high tech, consumer goods, aerospace & defense, and automotive.
Certified HX

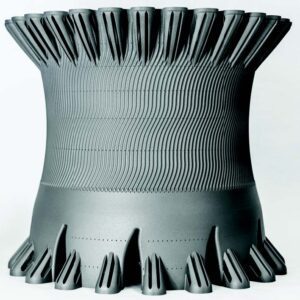

Certified HX is a high-performance nickel alloy that contains a higher percentage of molybdenum (up to 9.5%) versus other nickel alloys, which enhances its strength and resistance to corrosion, creep deformation, cracking, and oxidation in hot zone environments. This material is ideal for applications with a service temperature of up to 1200°C. With its part quality and part density (typically 99.9%), Certified HX is ideal for producing tall, large parts with integrated cooling and flow channels in optimal orientation for the energy, industrial gas turbine (IGT), petro-chemical, and aerospace & defense industries. These include applications such as hot zone stator blades and integrated stators, impellers, turbine vanes, drilling tools, and combustion components that benefit from the high service temperature of the HX material.
3D Systems developed the parameters for Certified HX to be used with the DMP Flex 350, DMP Factory 350, and DMP Factory 500 in collaboration with its partner, GF Machining Solutions. These parameters were tested and optimized with GF Casting Solutions using real-world IGT and aerospace applications. “The DMP Factory 500 together with the new printing parameters for the HX nickel alloy allows us to scale our additive manufacturing services by delivering large cross-section parts such as combustion chamber casings, stators, and impellers,” said Marco Salvisberg, business development manager, additive manufacturing, GF Casting Solutions. “The high heat deflection temperature of the HX material combined with the surface smoothness, part accuracy, narrow tolerances, and high repeatability of the DMP Factory 500 printing process addresses the essential performance requirements of these parts and critical features such as cooling channels.”
Certified CuCr2.4

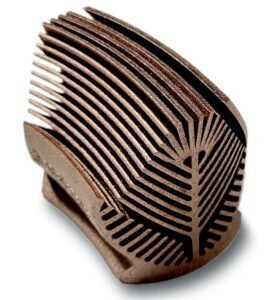

Certified CuCr2.4 is a high-strength, corrosion-resistant copper alloy that is significantly stronger than pure copper and easier to process for additive manufacturing applications. Its superior part density (typically 99.9%) and high conductivity after heat treatment make CuCr2.4 ideal for heat management and cooling systems in the high-tech, consumer goods, automotive, and aerospace & defense industries, especially when strength is also a requirement.
About 3D Systems
More than 35 years ago, 3D Systems brought the innovation of 3D printing to the manufacturing industry. Today, they bring innovation, performance, and reliability to every interaction – empowering their customers to create products and business models. Thanks to their offering of hardware, software, materials, and services, each application-specific solution is powered by the expertise of their application engineers who collaborate with customers to transform how they deliver their products and services. 3D Systems’ solutions address a variety of advanced applications in healthcare and industrial markets such as medical and dental, aerospace & defense, automotive, and durable goods. More information on the company is available at www.3dsystems.com.
