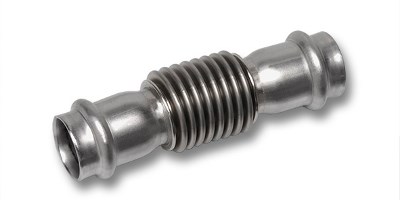

SANHA has recently offered newly improved axial expansion compensators for NiroSan® and NiroTherm® pipeline systems. These new compensators have a significantly better axial movement absorption capacity as well as high restoring forces.
SANHA axial expansion joints made of stainless steel have been optimized with regard to the maximum axial expansion. For a given load and improved axial movement of between 7 mm and 23 mm, our new compensators have an even longer anticipated service life.
The new SANHA axial expansion joints for the series NiroSan® (material number 1.4404) and NiroTherm® (1.4301) are made of stainless steel with a minimum content of 2.3% molybdenum and reduced carbon content, for a higher corrosion resistance and are available in sizes ranging from 15 mm to 108 mm.
All axial compensators have integral double-sided press ends. Depending on the series and the sealing ring, the possible applications include drinking and rainwater, heating, inert gases, oil-free compressed air and industrial applications up to 16 bar operating pressure.
