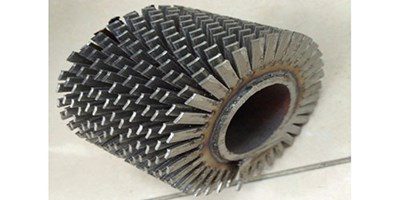

HFW Serrated Finned Tubes is short for High Frequency Welded Helical Spiral Serrated Finned Tubes.
Helical serrated finned tubes, serrated fins cut from a metal strip and then helically wound around the tubes.
The important features of this configuration are Efficiency, effective bond of fins to tubes under all conditions of temperature and pressure, and ability to withstand high fin side temperatures. This serrated fin configuration is even better to withstand the fin fouling if that is a problem in the application. This gives better heat transfer properties compared to solid fins.
Base Tube Details: Tubes Diameter Range: 15.88 mm to 219 mm; Tubes Thickness Range: 1.651 mm to 16mm; Tube Material: Carbon Steel Seamless Tubes, Stainless Steel, Carbon Alloy Steel, Corten Steel, Duplex Stainless Steel, Super Duplex Stainless Steel S32750, Inconel Alloy, High Chrome High Nickle Incoloy alloy, CK 20 material, and some other material.
Fin Details: Fins Thickness: Min. 0.8 mm to Max. 4 mm; Fins Height: Min 0.25´´ (6.35 mm) To Max 1.5´´ (38 mm); Fin Density: Min 43 Fins per Meter to Max. 287 Fins per Meter; Material: Carbon Steel, Stainless Steel, Alloy Steel, Corten steel, Duplex Steel, and Incoloy Alloy.
